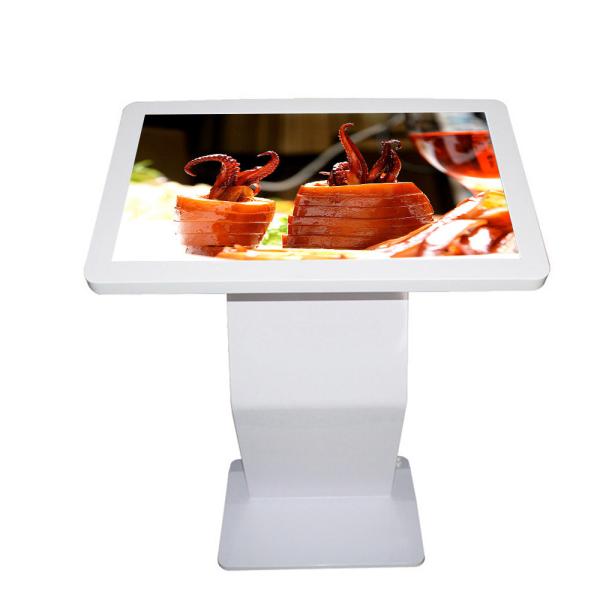

Windows system 65 inch TFT commercial digital signage displays HD
ad player
KINDLO-WS65-03WIN
Details:
Place of Origin: Guangdong, China
Brand Name: KINDLO
Model Number: KINDLO-WS65-03WIN
Type: TFT
Application: Indoor
Viewing Angle: H178/V178
Pixel Pitch: 0.4845mm (H) x 0.4845mm (W)
Contrast Ratio: 1300:1
Brightness: 450cd/m2
Response Time: 6ms
Input Voltage: AC 110V~240V
Warranty: 2 years, 2 years
After-sales Service Provided: Video technical support, Online
support
Certificate: CE/CCC/FCC/ROHS/ISO9001
Panel Size: 65 inch, From 32 inch to 65 inch
Brand for LCD: LG
Network Remote Function: Can be added
Logo: Can be customized
Color: 16.7M, Silver,Break,Gold (accept color customized )
Optional Function: Windows System
Installation: Horizontal
Description:
| Panel Specification: |
| lcd kiosk: | self service infrared touch kiosk |
| Mode: | 16:9 |
| Maximum resolution: | 1920*1080 HD |
| Display color: | 16.7M |
| Pixel Pitch(mm): | 0.630(H)×0.630mm(V) |
| Brightness (nits): | 450nits |
| Contrast: | 1100:1 |
| Visual angle: | 178°/178° |
| Response: | 6ms |
| PC Specification: | PC |
| Main board: | H81 |
| CPU: | Intel® Core™ i3-370M Processor 2.40 GHz, 3MB Cache CPU |
| RAM: | DDR3, 4GB |
| HDD: | 500G |
| Graphics: | CPU integrated |
| Wifi model: | Yes |
| Wired network: | built-in pc |
| LED panel: | Original factory Grade A new panel |
| Panel life: | above 50,000hrs |
| Operating System: | Windows 7, Windows 8, Windows XP etc. |
| Remrk : i5, i7 series and other configurations are also available . |
| Physical Specification: |
| Surface: | anti-scratched tempered glass |
| Color: | Black/White/customized colors |
| Fan: | 2X12V fans |
| Audio/Speakers: | 2*10 CM,12W,2500 revolutions per minute |
| Ports/Slots: | Power input | Power switch | PC switch | USB | LAN |
| Cables: | Standard international power cableor according to your requirement |
| Power supply: | AC 110–240, 50-60Hz |
| Operating temperature: | 0°C ~ +40°C |
| Storage temperature: | -20°C ~ +60°C |
| Humidity: | 0% ~ 80% |
| Other Kiosk Components: | all are optional, please inform us if needed. |
| Camera: | Logitech |
| Wired network: | 3G/GPRS modem, Support Bluetooth, GPS receiver |
| Printers: | 58mm,80mm, ticket printers |
| Input: | Keyboards, Touch pads, Trackballs |
| Card Devices: | Magnetic / IC / RFID devices, Multi-card reader |
| Payment Devices: | Debit / Credit Card Payment devices, Bill & Coin devices |
| Scanners: | Barcode & document scanners |
| Authentication: | Biometric devices & signature pads |
Applicable places:
Public places: Bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
Entertainment and leisure: Cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: Food processing equipment, machinery control, office automation
equipment, automated testing,
automotive testing equipment, etc .;
Transportation place: Bus station, passenger station, subway, high-speed rail, airport,
etc .;
Medical places: Hospitals, medical institutions, pharmacy chain institutions, etc.
After Sales Service:
After sale, if you have any questions about our product, you can
inform us by mail or call, and we will reply you
in 24 hours when we get you E-mail or call, and offer you a good solution for
your problem.
We could send our engineer to guide the installation for you. But
the relevant cost should be paid by your esteemed
company such as visa, hotel, food, plane ticket for back and forth, and
also your esteemed company should pay our
staff USD100/ day/staff (from our engineer's departure from Guangzhou) and should
help to arrange our staff visa.
Light color assist the training and technical support for the
customer in the factory, if the customer need. You can send
your engineer to our factory for training about test, installation,
maintenance. We will offer professional training free.
Exhibtion:
Why you choose Jingdinuo?
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the
first professional
manufacturer of commercial display equipment. We have more than 20
years production
experience and over 10 years export trade.
All of our product have strict inspection and passed the CE, CCC,
RoHS, FC and IEC
certifications to insure quality. We owe 2000 square meters large
factory. We have won
the big support from the customers through the efforts of more than
100 colleagues.
We have professional technical personnel, rich operational
experience and excellent
technical strength etc. Professional designers team make sure to
meet customers’
requirements. Until now our products and services have recognized by customers.
Our main products:
Stand floor digital signage/ Wall mount digital signage/ Outdoor
digital signature/
Elevator digital signage/ Hanging double side digital signage/ LCD
video wall/
Transparent showcase etc.
Welcome to cooperate on mutual benefits together. Many thanks!
