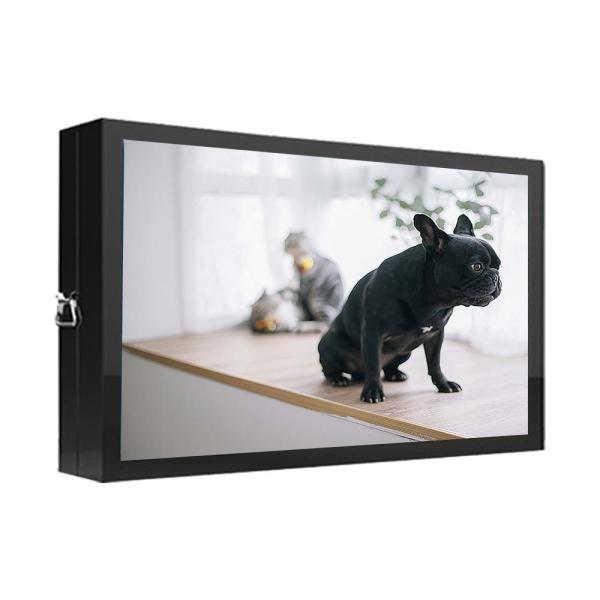

KINDLO-HYBG-100
Place of Origin: Guangdong, China
Brand Name: KINDLO
Model Number: KINDLO-HYBG-100
Type: TFT
Application: Outdoor
Viewing Angle: H178°/ V178°
Pixel Pitch: 0.4845 x 0.4845 mm
Contrast Ratio: 5000:1
Brightness: 3000cd/m2
Response Time: 5ms
Input Voltage: AC100~240V 50 /60 HZ
Warranty: 1 year
After-sales Service Provided: Video technical support, Free spare
parts, Online support
Display Area: 930(w)x523(h)mm 16:9
Optional Function: PC (i3 i5 i7), Network (Linux or Android)
Outdoor: optional (high brightness 1000~3000)
Network support: RJ45, WIFI, 3G/4G(optional)
Installation method: Wall-mount, Floor-stand, Rack-mount, Embedded
Menu language: Chinese / English / Multi language
Information system: Optional
Software functions:
| Specifications |
| Model No. | KINDLO-HYBG-100 |
| Display area(mm)/mode | 930(W)×523(H) 16:9 |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) |
| Brightness (nits) | 3000cd/m2 |
| Contrast | 5000:1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Android |
| Andriod system | Google Android 5.1 support multi-language with wifi moulde |
| Storage | 2G/4G/8G DDR3 |
| CPU | 1.8 Ghz/quad-core RK3288 |
| Flash | 8GB/16GB/32GB |
| Video |
| Color system | PAL/NTSC/SECAM |
| OSD display( screen menu display) |
| Menu language | Chinese/English( Multiple Language Supported) |
| Power |
| Power supply | 100-240V AC 12V/ DC |
| Maximum power consumption | 230W |
| Standby power consumption | <3W |
| Temperature |
| Working temperature | -20°C~+80°C |
| Storage temperature | -40°C~+80°C |
| Working humidity | 25%~85% |
| Storage humidity | 20%~90% |
| Support signal format |
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format | Wave/MP3/WMA/AAC |
| Image format | JPEG/BMP/TIFF/PNG/GIF |
| Image resolution | 480P/720P/1080P |
| Appearance |
| Body dimension(Lx W x H)mm | 1000*500.*1300.2 ((for reference) |
| Panel color/appearance | White, black, customized |
| Panel material | Metal case SPCC |
| Installation | Wall-mount |
| Quality Standard | ISO9001,CCC,CE,FCC,ROHS |
| Sample leading time | 12~15 working days |
| Bulk order leading time | 12~15 working days |
| Payment term | T/T or Western union |
| Warranty | 1 year |
Applicable places:
Financial institutions: banks, securities, funds, insurance companies, pawn shops, etc .;
Public places: bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: food processing equipment, machinery control, office automation
equipment, automated testing,
automotive testing equipment, etc .;
Transportation place: bus station, passenger station, subway, high-speed rail, airport,
etc .;
Medical places: hospitals, medical institutions, pharmacy chain institutions, etc.
After Sales Service:
After sale, if you have any questions about our product, you can
inform us by mail or call, and we will reply you
in 24 hours when we get you E-mail or call, and offer you a good solution for
your problem.
We could send our engineer to guide the installation for you. But
the relevant cost should be paid by your esteemed
company such as visa, hotel, food, plane ticket for back and forth, and
also your esteemed company should pay our
staff USD100/ day/staff (from our engineer's departure from Guangzhou) and should
help to arrange our staff visa.
Light color assist the training and technical support for the
customer in the factory, if the customer need. You can send
your engineer to our factory for training about test, installation,
maintenance. We will offer professional training free.
Exhibtion:
Why you choose Jingdinuo?
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the
first professional
manufacturer of commercial display equipment. We have more than 20
years production
experience and over 10 years export trade.
All of our product have strict inspection and passed the CE, CCC,
RoHS, FC and IEC
certifications to insure quality. We owe 2000 square meters large
factory. We have won
the big support from the customers through the efforts of more than
100 colleagues.
We have professional technical personnel, rich operational
experience and excellent
technical strength etc. Professional designers team make sure to
meet customers’
requirements. Until now our products and services have recognized by customers.
Our main products:
Stand floor digital signage/ Wall mount digital signage/ Outdoor
digital signature/
Elevator digital signage/ Hanging double side digital signage/ LCD
video wall/
Transparent showcase etc.
Welcome to cooperate on mutual benefits together. Many thanks!
