Advertising Display 2500nits IP65 Outdoor Waterproof Digital
Signage Equipment
KINDLO-HYTR-43-T
Main features
1. IP65 design for outdoor application.
2. High brightness up to 2500cd/m2, readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C
environment temperature.
4. Lightning protection and heating below zero

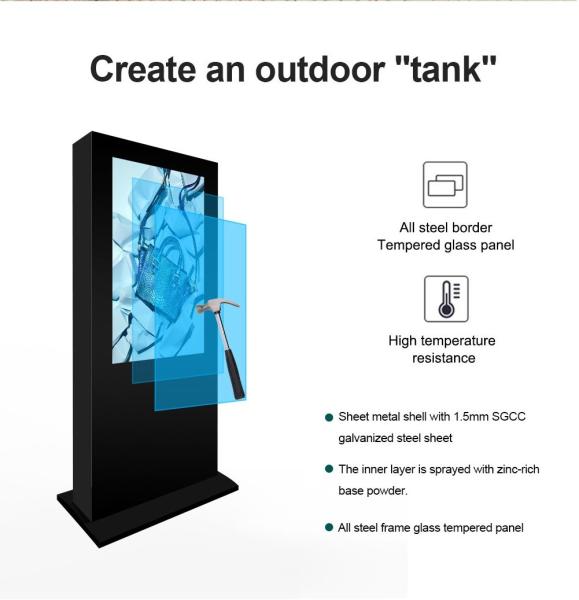

5. Fron tempered glass and anti-glare glass
6. Intelligent light system, brightness of screen auto adjusts
according to environment light, saving energy.
7. Anti-dust, anti-vandal, anti-theft.
8. Customized design for you without additional cost.
9. Screen sizes available 19-82inch
10. Wall mount, roof hanging and free standing(fixed on ground) all
available.
11. Security electric circuit design
Configuration options
| Touch screen option | Nano |
| All in one PC | Ingrated PC board,custom hardware |
| Network version | LAN/WIFI/3G,remote control from server |
| Monitor only | With HDMI/VGA/DVI input connecting your device
|
| Panel Specifications | Model No. | KINDLO-HYTR43-T |
| Panel size | 43 inch |
| Display area(mm)/mode | 16:9 |
| Maximum resolution | 3840*2160 |
| Visual angle | 178°/178° |
| Brightness | 1500cd/m2, 2000cd/m2, 2500cd/m2, etc |
| Contrast | 5000:1 |
| Response time | 5ms |
| Parameters | Protetion Ratin | IP65 |
| Working temperature | -20°C~50°C |
| Working humidity | 20%-80% |
| Temperature control system | Air conditioner | Voltage Rated:AC110V/60Hz OR other |
| Current Rated:AC 6.5A |
| Power Rated:AC 500W |
| Cooling Capacity:1500W(L35 L35) |
| Heating Capacity:500W(optional) |
| Ambient Temperature:-20℃~55℃ |
| IP Grade:IP65 |
| Radiator | Working Pressure:2bar-40bar |
| Specification: 2Kw-400Kw |
| Operating system | Standalone version | RAM:8G,SD play |
| Android version | Daul Core Cortex-A8,2G ROM,android 5.0 or above |
| Windows PC | Intel i3 i5 i7 core |
| Appearance | Panel Color | White, black, customized |
| Menu language | Chinese/English( Multiple Language Supported) |
| Body dimension | 1980*740*225mm |
| Installation | Floor standing,Wall-mount |
| Internet Control | LAN,WIFI,3G(Optional) |
Applicable places:
Financial institutions: banks, securities, funds, insurance companies, pawn shops, etc .;
Public places: bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: food processing equipment, machinery control, office automation
equipment, automated testing,
automotive testing equipment, etc .;
Transportation place: bus station, passenger station, subway, high-speed rail, airport,
etc .;
Medical places: hospitals, medical institutions, pharmacy chain institutions, etc.
Exhibtion:
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the
first professional
manufacturer of commercial display equipment. We have more than 20
years production
experience and over 10 years export trade.
We have professional technical personnel, rich operational
experience and excellent
technical strength etc. Professional designers team make sure to
meet customers’
requirements. Until now our products and services have recognized by customers.
Our main products:
Stand floor digital signage/ Wall mount digital signage/ Outdoor
digital signature/
Elevator digital signage/ Hanging double side digital signage/ LCD
video wall/
Transparent showcase etc.
Welcome to cooperate on mutual benefits together. Many thanks!
