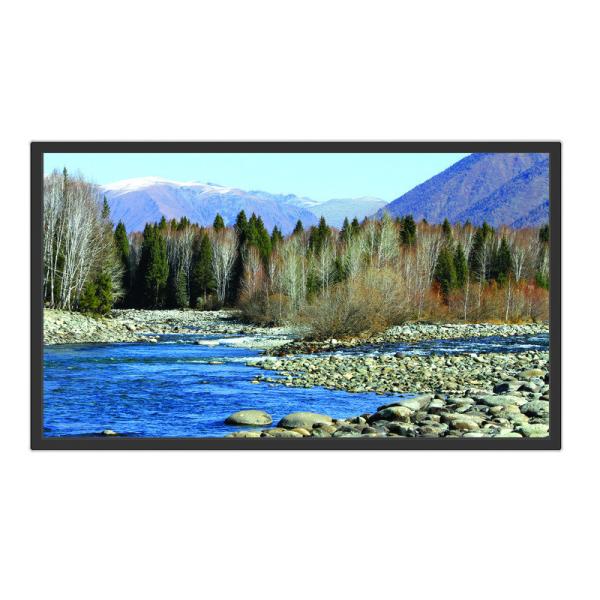

49 Inch Wall Mounted Non Touch Screen Clothes LCD Advertising
Digital Signage Kiosk Display
KINDLO-BG49-06AN
Product Description:
Panel | 49inch advertising LCD digital signage display |
Material of Outershell | Aluminum frame+tempered glass+metal |
Display Area | 1073.8×604mm |
Resolution | 1920*1080 |
Display Colour | 16.7M |
Brightness | 350cd/m2 |
Viewing Angle | 178/178 |
Life(hrs) | ＞60,000hrs |
Android System | Android 6.0, Rockchip RK3288 Quad-core processor, RAM 2G DDR3,
Flash 8GB built-in. |
Input and Output | RJ45*1,USB*2,HDMI*1 |
OSD Language | Chinese/English (Multiple Language Supported) |
Power Supply | AC100-240V,50-60 Hz |
Audio frequency output | 5W*2 |
Packing Dimension | 1170*130*750mm |
Net Weight | 24kg |
Gross Weight | 27kg |
Optional | Non touch /Infared touch / Capacitive touch |
Features:
Structural design: Mould sheet metal assembly structure, ergonomic design, slim and
beautiful,
streamlined shape, and sophisticated technology.
Use effect: Simple and convenient to use and easy to maintain.
Good expandability: flexible configuration, can expand and install various functional
accessories
required by customers.
High security: aluminum alloy + sheet metal structure, no sharp edges,
wear-resistant anti-corrosion
paint process, overall anti-theft and anti-riot design.
Stable performance: advanced design concept, strict production technology, stable and
reliable
product quality, and low failure rate.
Easy installation: Power on and off with one button, eliminating site installation
and commissioning.
Software functions:
Operating system | Android 5.X / 6.X |
Touch method | Multipoint infrared touch screen |
High security | Support hardware dongle, login password, control password,
hierarchical user permission settings |
Video formats | Support RM / RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV |
Audio formats | Support MPEG-1 Layers I, II, III2.0, MPEG-4 AAC-LC 5.1 / HE-AAC,
5.1 / BSAC 2.0, WAV, 24-bit linear PCM 7.1 |
Image formats | Support JPEG, PNG |
Other formats | PDF, PPT, SWF, text, real-time data streaming |
Screen division | Video area, graphic area, rolling subtitle, LOGO area, date area,
time area, week area, weather forecast area, real-time picture
area, real-time video area |
System upgrade mode | U disk update |
Management mode | Unified management, group management, multi-user management, remote
management, timing on / off |
Remote operation mode | Remote automatic power on / off, remote update, edit and play
programs, remote monitoring status |
playback mode | Support multiple playback modes such as loop, timing, and insert
play |
System architecture | Adopt advanced B / S (Browser / Server) management architecture |
Network | Support local area network, wide area network, WIFI, 4G |
Built-in speakers | Built-in mini dual speakers |
| Language | Multi-language OSD menu, default is Chinese, English, Japanese,
French |
CPU | Support A20 / A83T / 3188/3288/3368/3399 / etc; DDR3 running memory 1GB / 2GB storage space 8GB / 16G (expandable) |
Device interface | 2 USB externa; 4 USB built-in; 1 SD; 1 RJ45 network port; 1 LVDS, 1 HDMI2.0 support 4K @ 60HZ output (customization
required); Support WIFI/ Bluetooth / 4G (optional) Wired network is
recommended |
Applicable places:
Financial institutions: banks, securities, funds, insurance companies, pawn shops, etc .;
Public places: bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: food processing equipment, machinery control, office automation
equipment, automated testing,
automotive testing equipment, etc .;
Transportation place: bus station, passenger station, subway, high-speed rail, airport,
etc .;
Medical places: hospitals, medical institutions, pharmacy chain institutions, etc.
Exhibtion:
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the
first professional
manufacturer of commercial display equipment. We have more than 20
years production
experience and over 10 years export trade.
All of our product have strict inspection and passed the CE, CCC,
RoHS, FC and IEC
certifications to insure quality. We owe 2000 square meters large
factory. We have won
the big support from the customers through the efforts of more than
100 colleagues.
We have professional technical personnel, rich operational
experience and excellent
technical strength etc. Professional designers team make sure to
meet customers’
requirements. Until now our products and services have recognized by customers.
Our main products:
Stand floor digital signage/ Wall mount digital signage/ Outdoor
digital signature/
Elevator digital signage/ Hanging double side digital signage/ LCD
video wall/
Transparent showcase etc.
Welcome to cooperate on mutual benefits together. Many thanks!
