Digital Signage Indoor Lcd Media Android Display Kiosk Vertical
Advertising Screen
KINDLO-LS65-07I3
Overview:
10 Touch points Capacitive touch with G+G touch screen Wifi network i3 version of high-definition
advertising machine, used to display and play commercial
advertisements, planning and publicity, etc.,
A fast and convenient online publishing mode, as long as there is a
network, users can manage
advertising machines in various places. The double glass that allows the touch screen not only protects
the conductors and sensors, but also effectively prevents external environmental factors from affecting
the touch screen. Even if the screen is contaminated with dirt, dust or oil, the capacitive touch screen
can still accurately calculate the touch position.
Features:
Touch screen: 10 touch points Capacitive touch with G+G touch screen
Structural design: Mould sheet metal assembly structure, ergonomic design, slim and
beautiful,
streamlined shape, and sophisticated technology.
Use effect: Simple and convenient to use and easy to maintain.
Good expandability: Flexible configuration, can expand and install various functional
accessories
required by customers.
High security: Aluminum alloy + sheet metal structure, no sharp edges,
wear-resistant anti-corrosion
paint process, overall anti-theft and anti-riot design. hardware
dongle, login password, control password,
hierarchical user permission settings
Stable performance: Advanced design concept, strict production technology, stable and
reliable
product quality, and low failure rate.
Easy installation: Power on and off with one button, eliminating site installation
and commissioning.
Software functions:
General Specification |
Material of shell | 3mm Aluminium,1.5mm mild steel, 5mm temperglass, Industrial high
level Podwer coating. |
Certification | FCC,RoHS,CE,UL, BIS |
Interface | USB,DVI,VGA,….. |
Content management software included | setup your own server or use marvel cloud service (Marvel
Cloud:http://inf.marveltechgroup.com) |
Speaker | 5Wx2 |
Storage Medium | Flash memory card(2gb to 36gb for the capacity) |
Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
Audio formats | Android system |
Photo formats | JPG,bmp |
Audio output | stereo L/R, 5Wx2, 8Ω |
Storage Temp. | -7 to 65 Celsius degree |
Normal Working Temp. | -5 to 65 Celsius degree |
Language | The default is Chinese and English, others need to be confirmed |
Power Supply | AC 110V - 240V, 50/60HZ |
No. | Components | Model | Details |
1 | Media Player | Android-RK3288 | GPU | ARM Mali-T764 GPU |
CPU | Quad core Cortex-A17, 2.0GHZ |
DDR | 2G |
ROM NAND FLASH | 8G(Exteral ROM Support up to 32G bytes sd card) |
WIFI | High quality WiFi module included (802.11 B/G/N) |
Network Interface Card | 10/100/1000 Mbits/sec Ethernet LAN connectivity |
Content Management Software included | setup your own server or use Marvel cloud service(Marvel
Cloud:http://inf.marveltechgroup.com) |
OS | Android 5.1.1 |
2 | Panel | A+ Glass | Brightness | 350nits |
Angle | 178°/178° |
Contrast | 1300:1 |
Backlight tube life | more than 50,000 hours |
Operating temperature | 0-50°C |
Response Time | 8ms |
Max. resolution | 1920*1080 |
3 | Power | Input Voltage | AC100~240V 50 /60 HZ |
Power Consumption | 140-150W |
Standby power consumption | <5W |
4 | Enviroment | Work Temperature | 0-50℃ |
Storage Temperature | -20-60℃ |
Work Humidity | 10%-90% |
Storage Humidity | 5%-95% |
5 | OSD Language | English/Chinese Multi-Language Supported |
6 | Speakers | OP‐100 | Dual channel amplified speakers for Stereo ,8Ω 5W |
7 | Cabinet | Marvel | Dimention | Decided when finish production |
Color | Optional by customer |
1.5mm mild steel sheet |
8 | Accessories | power cables, screws,keys etc |

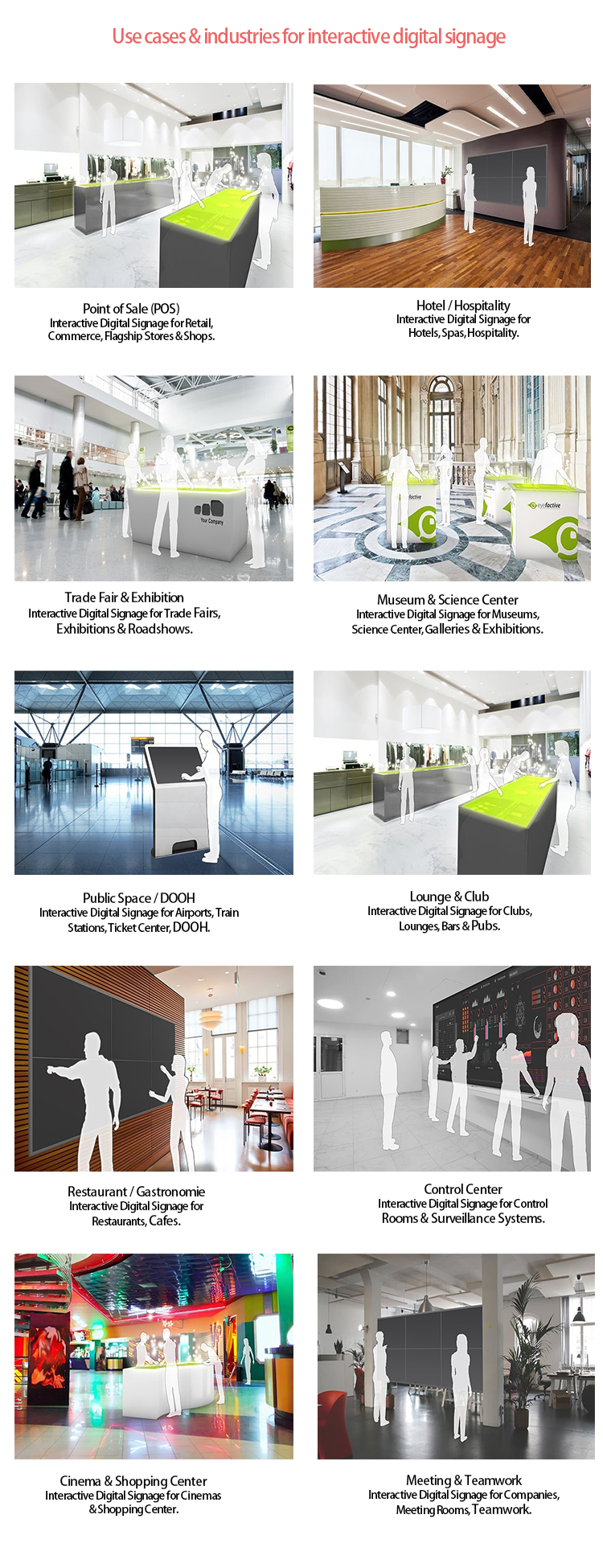

Applicable places:
Financial institutions: banks, securities, funds, insurance companies, pawn shops, etc .;
Public places: bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets, etc .;
Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain
stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: food processing equipment, machinery control, office automation
equipment, automated testing,
automotive testing equipment, etc .;
Transportation place: bus station, passenger station, subway, high-speed rail, airport,
etc .;
Medical places: hospitals, medical institutions, pharmacy chain institutions, etc.
Exhibtion:
Why you choose Jingdinuo?
Guangzhou Jingdinuo Electronic Technology Co., Ltd. which is the
first professional
manufacturer of commercial display equipment. We have more than 20
years production
experience and over 10 years export trade.
We have professional technical personnel, rich operational
experience and excellent
technical strength etc. Professional designers team make sure to
meet customers’
requirements. Until now our products and services have recognized by customers.
Our main products:
Stand floor digital signage/ Wall mount digital signage/ Outdoor
digital signature/
Elevator digital signage/ Hanging double side digital signage/ LCD
video wall/
Transparent showcase etc.
Welcome to cooperate on mutual benefits together. Many thanks!
