Touch Screen Digital Signage
Competitive Advantage

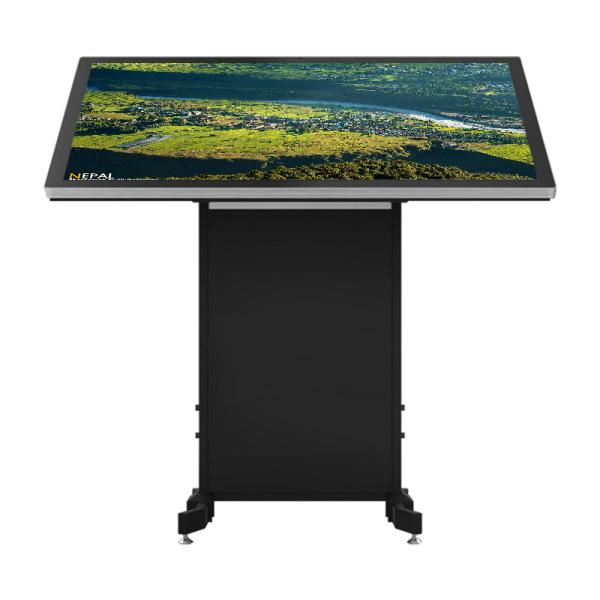

► A horizontally designed digital kiosk display is ergonomically
designed to be easy to touch and view.
► This product is made of high-quality aluminum alloy material and
cold rolled steel plate.
► Industrial fan, fan with positive control and pressure is
dustproof, low noise and good heat dissipation performance.
► 10-point infrared LED touch panel gives you a better touch
experience.
► High-quality piano paint, smooth and even surface.
► Digital kiosk display is pluggable, supports 7 * 24 hours of work
and display, supports video, text, pictures, etc., all kinds of
materials are updated in real-time for promotion.
| Panel parameters |
| 1 | Refresh frequency | 60Hz |
| 2 | Resolution | 1920*1080 |
| 3 | Screen ratio | 16: 9 |
| 4 | Visual angle | 189/189/189/189 |
| 5 | Max brightness | 350~450CD/m2 |
| Core parameters |
| 6 | Chip | Dual-core A53 processor; Quad-core GPU; Dominant frequency: 1.2GHz. |
| 7 | Operation system | Android 4.4. 2 |
| Interface Setting |
| 8 | USB2.0 | 1 |
| Specification model |
| Panel size | 18.5~108 inch |
| Display area(mm)/mode | according to the screen size |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.264(H)×0.264(V) |
| Brightness (nits) | 350~450 cd/㎡ |
| Contrast | 4000 |
| Visual angle | 178°/178° |
| Response time | 5 ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| System | Android system |
| Panel Brand | LG |
| CPU | 3288 |
| RAM | 2GB ( 4GB optional ) |
| ROM ( internal memory ) | 8GB/16GB ( 32 GB optional ) |
| OS | Android 5.1/6.0/7.1 ( Android OS will be updated as time goes by) |
| Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc. |
| FHD 1080P Video | YES |
| Picture Format | JPG, BMP,PNG,etc. |
| Text | TXT |
| Audio Format | MP3, WAV |
| HDMI Output | 1 ( Quad-Core version ) |
| SD/ TF card slot | 1 |
| Mic in | 1 |
| Audio out | 1 |
| USB | 1 |
| RJ45 | 1 |
APPLICATIONS:
Banks, securities, funds, insurance companies, pawnshops;
Bookstores, exhibition halls, stadiums, museums, conference
centers, talent markets;
Cinemas, fitness gyms, resorts, entertainment venues, foot baths,
KTV bars;
beauty salons, golf courses.
Finish your signage process by picking out a frame that perfectly
fits the facility’s and atmosphere.
Our beautiful custom frames make the perfect addition to your
advertising digital signage.
Each frame is custom built to fit your sign impeccably.
We will offer professional training for free.
Our factory product picture:
